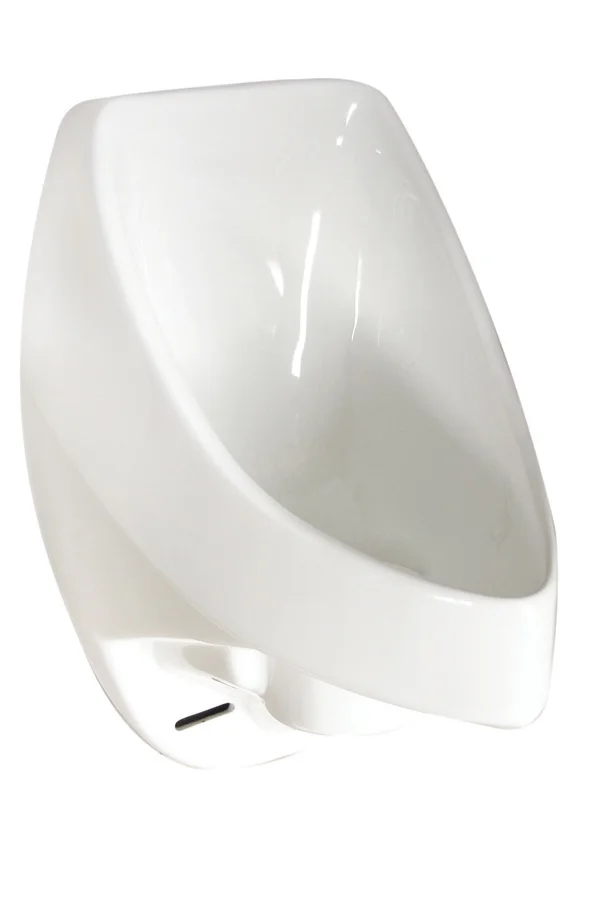

BAJA™ #2104

Vitreous China

Slick & Little. Touch-Free. Making BIG Impressions. Classic Design.

14.0"W x 21.5"L x 14.5"D (356MM x 546MM x 368MM)

• ADA Compliant

• Complies with ANSI Z124.9, A112.19.19, A117, CSA® others

• EcoTrap® Inside!!

• Urinal comes with two EcoTrap® inserts, mounting hardware, gasket and installation instructions.

• Available in standard sanitary white or color. Please inquire.

WATERLESS FEATURES

• All wall drain No-Flush™ urinal models install like flushed urinals to the to the standard 2” (52mm) drain line via a gasket and flange. No adaptors needed!

• All wall drain units have a closed urinal bottom to avoid vandalism. No need to buy separate costly bottom covers.

• All of our urinals have a full 2” (52mm) interior drain line. This allows easy line cleaning and access if needed. Urinal does not need to be removed from wall for snaking. Saves time!

• No gaskets or O-rings needed on EcoTrap® inserts. Simple pressfit!

• The EcoTrap® unit removes completely for servicing and change-out. No taking traps apart for cleaning and to reassemble!

SPECIFICATIONS

• Download Baja™ Specifications (PDF)

• Download Maintenance Instructions (PDF)

• Download Maintenance Instructions - SPANISH (PDF)

• Download Installation Instructions (PDF)

• Download Waterless Brochure (PDF)

ARCHITECTURAL

• BAJA 2104 BIM (.rFA)

• BAJA 2104 - 2D AUTOCAD (.dWG)

• BAJA 2014 - 3D AUTOCAD (.dWG)

CERTIFICATIONS

• National Green Building Standard Certification (PDF)

• IAPMO Water Efficient Plumbing (PDF)
